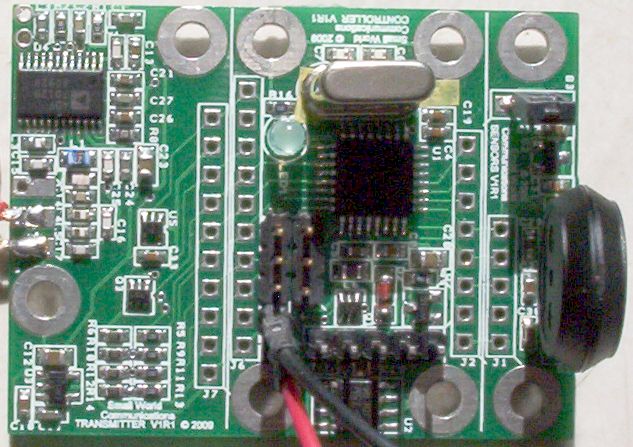

Photo larger than actual size.
The TINSAT cansat system consists of three separate modules. The Sensor Module (SM) includes a Freescale Semiconductor MPX4115A pressure sensor, Microchip TC1047A temperature sensor and Honeywell HIH-4000 humidity sensor. The Controller Module (CM) includes an Atmel ATmega328P 12.288 MHz microcontroller with serial interface and a light emitting diode (LED). The Transmitter Module (TM) includes an Analog Devices ADF7012 transmitter. The modules are available separately, as one single printed circuit board (PCB), as a SM/CM PCB or as a CM/TM PCB.
- Pressure, temperature and humidity sensors
- Total of six A/D or four A/D and I2C
- ATmega328P microcontroller at 12.288 MHz
- Serial interface
- LED output
- 9V input
- 1200 bit/s AFSK or 9600 bit/s FSK or GFSK AX.25 packets
- 916.36 MHz ISM Band transmit frequency (other frequencies available on request)
- Up to 20 mW transmit power
- Very small size 38.6x51.3 mm single board or separate boards for sensors, controller and transmitter
- Bootloader for Flash and EEPROM programming using standard serial cable
- Data Sheet
- AU$230 not including GST (about US$230) for a set of boards (sensors, controller and transmitter), connecting cables and computer cable. Lower pricing available for higher quantities. For all orders please contact us for a quote. Note that each TinSat is made to order, so delivery times can vary from one week to two months, depending on availability of parts.
